Filtres actifs
1Size ''' / Size mm 11 ½ 26.20
Height mm 1.90
Total height mm 3.50
Hand-fitting 1
Jewels 8
Date position D3
Hour wheel RL3301.211
Stem RL3000.170
Battery 341 / SR714SW
Hands holes Ø mm 120/70/20
PDF
DOCUMENTATION TECHNIQUE
Size ''' / Size mm 12 ½ 28.60
Height mm 4.40
Total height mm 7.00
Hand-fitting 2
Jewels 13
Date position D4
Hour wheel RL3301.242
Stem RL3000.177
Battery 395 / SR927SW
Hands holes Ø mm 150/90/80/80/40/40/25/20
Information Small Sec at 3, Hrs/Min Alarm at 6, 30 Min and 12Hrs at 9
PDF
Size ''' / Size mm 10 ½ 23.90
Height mm 1.90
Total height mm 3.05
Hand-fitting 1
Jewels 5
Date position -
Hour wheel RL3301.211
Stem RL3000.169
Battery 341 / SR714SW
Hands fitting Ø mm 120/70PDF
Size ''' / Size mm 12 ¾ 29.50 x 26.00
Height mm 4.57
Total height mm 6.93
Hand-fitting M
Jewels 0
Date position D3
Hour wheel S0271407
Stem SK0405.VX12E
Battery 371 / SR920SW
Hands holes Ø mm 110/65/21/21/20
Information 60 Min at 6, Small Sec at 12
Size ''' / Size mm 11 ½ 23.50
Height mm 4.15
Total height mm 5.80
Hand-fitting -
Jewels 0
Date position D6
Hour wheel MY075.545
Stem MY065.299
Battery 377 / SR626SW
Hands holes Ø mm 120/70/17
PDF
DOCUMENTATION TECHNIQUE
Size ''' / Size mm 6 ¾ x 8 17.40 x 18.20
Height mm 4.30
Total height mm 5.66
Hand-fitting -
Jewels 0
Date position D3
Hour wheel MY075.455
Stem MY065.505
Battery CR1616
Hands holes Ø mm 120/70/17
PDF
DOCUMENTATION TECHNIQUE
Size ''' / Size mm 10 ½ 23.90
Height mm 5.12
Total height mm 7.23
Hand-fitting 1
Jewels 6
Date position D4
Hour wheel Not available
Stem ETA258657
Battery 394 / SR936SW
Hands holes Ø mm 150/90/30/20/20/20
Information Not Dismountable, 1/10 Sec at 2, Small Sec at 6, 30 Min at 10
PDF
Size ''' / Size mm 12 ½ 28.60
Height mm 4.40
Total height mm 6.65
Hand-fitting 1
Jewels 13
Date position D4
Hour wheel RL3301.241
Stem RL3000.177
Battery 395 / SR927SW
Hands holes Ø mm 150/90/25/20/20/20
Information Small Sec at 3, 1/10 Sec at 6, 30 Min at 9
PDF
DOCUMENTATION TECHNIQUE
Size ''' / Size mm 12 27.60 x 24.00
Height mm 3.70
Total height mm 5.86
Hand-fitting M2
Jewels 0
Date position D3
Hour wheel S0271588
Stem S0351584
Battery 395 / SR927SW
Hands holes Ø mm 110/65/90/21/21
Information Small Sec at 6, 60 Min at 12
Ligne de produits mastertech
Calibre 6003.D
Dimension du mouvement 11½'''
Version Swiss made
4 rubis, doré
Durée de vie de pile (théorique) 40 mois
Aiguillages standard 1
- Date
- 3 aiguilles
- Mouvement en métal, réparable
- Consommation réduite avec tige tirée: Réduction de consommation d'environ 70%
Diamètre total 26.20 mm
Encageage 25.60 mm
Hauteur mouvement 2.50 mm
Hauteur au-dessus de la pile 2.50 mm
Hauteur filet 0.6 mm
Hauteur tige 1.00 mm
Tige chemin 0.9 mm
Tige filetage 0.9 mm
Pile No. 373
Tension de la pile 1.5 V
Durée de vie de pile (théorique) 40 mois
Consommation - typique
(quantième non en prise) 1.03 µA
Consommation - maximum
(quantième non en prise) 1.85 µA
Couple utile petite seconde – typique
(quantième non en prise) 7 µNm
Couple utile aiguille de minute – typique
(quantième non en prise) 350 µNm
Température de fonctionnement 0 - 50 °C
Marche instantanée (T=25°C) -10/ +20 sec/mois
Résistance aux champs magnétiques 18,8 Oe
Résistance au choc NIHS 91-10
Datasheet PDF
Mode d'emploi PDF
Information d'emboîtage (T2)
Outils & accessoires
Plans d'habillement (Aiguillage, Cage, Cadran)
PDF
Size ''' / Size mm 12 ½ 28.60
Height mm 4.40
Total height mm 6.75
Hand-fitting 1
Jewels 10
Date position D6
Hour wheel RL3301.241
Stem RL3000.177
Battery 395 / SR927SW
Hands holes Ø mm 150/90/25/20/20
Information Small Sec at 3, 30 Min at 9
PDF
DOCUMENTATION TECHNIQUE
Size ''' / Size mm 11 ½ 23.50
Height mm 2.62
Total height mm 4.60
Hand-fitting S
Jewels 0
Date position D3
Hour wheel S0271929
Stem SK0405.VX12E
Battery 371 / SR920SW
Hands holes Ø mm 110/65/20
Size ''' / Size mm 11 ½ 26.20
Height mm 3.30
Total height mm 4.70
Hand-fitting 1
Jewels 5
Date position BD12 (big date)
Hour wheel RL3301.271
Stem RL3000.189
Battery 373 / SR916SW
Hands holes Ø mm 120/70//20
Information Small Sec at 6
PDF
Size ''' / Size mm 6 ¾ x 8 15.30 x 18.20
Height mm 2.50
Total height mm 3.80
Hand-fitting 2
Jewels 4
Date position -
Hour wheel RL3301.135
Stem RL3000.132
Battery 364 / SR621SW
Hands holes Ø mm 120/70
PDF
DOCUMENTATION TECHNIQUE
Size ''' / Size mm 6 ¾ x 8 15.30 x 18.20
Height mm 2.50
Total height mm 5.20
Hand-fitting 4
Jewels 4
Date position -
Hour wheel RL3301.204
Stem RL3000.132
Battery 364 / SR621SW
Hands holes Ø mm 120/70
PDF
DOCUMENTATION TECHNIQUE
Size ''' / Size mm 6 ¾ x 8 15.30 x 18.20
Height mm 2.50
Total height mm 4.30
Hand-fitting 3
Jewels 4
Date position -
Hour wheel RL3301.148
Stem RL3000.132
Battery 364 / SR621SW
Hands holes Ø mm 120/70
PDF
DOCUMENT TECHNIQUE
Size ''' / Size mm 6 ¾ x 8 15.30 x 18.20
Height mm 2.50
Total height mm 4.52
Hand-fitting 3
Jewels 5
Date position -
Hour wheel RL3301.148
Stem RL3000.132
Battery 364 / SR621SW
Hands holes Ø mm 120/70/20
PDF
DOCUMENTATION TECHNIQUE
Size ''' / Size mm 6 ¾ x 8 15.30 x 18.20
Height mm 2.50
Total height mm 4.15
Hand-fitting 2
Jewels 5
Date position -
Hour wheel RL3301.149
Stem RL3000.132
Battery 364 / SR621SW
Hands holes Ø mm 120/70/20
PDF
DOCUMENTATION TECHNIQUE
Size ''' / Size mm 6 ¾ x 8 15.30 x 18.20
Height mm 2.50
Total height mm 5.55
Hand-fitting 4
Jewels 5
Date position -
Hour wheel RL3301.204
Stem RL3000.132
Battery 364 / SR621SW
Hands holes Ø mm 120/70/20
PDF
DOCUMENTATION TECHNIQUE
Size ''' / Size mm 6 ¾ x 8 15.30 x 18.20
Height mm 2.50
Total height mm 5.10
Hand-fitting 6
Jewels 5
Date position -
Hour wheel RL3301.217
Stem RL3000.132
Battery 364 / SR621SW
Hands holes Ø mm 120/70/20
PDF
DOCUMENTATION TECHNIQUE

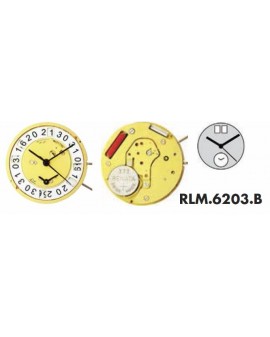

Analog quartz movement
Product line mastertech
Caliber 6203.B
Movement size 11½'''
Version Swiss made
Swiss parts
5 jewels, gilt
1 jewel, nickel
Battery-life (theoretical) 43 months
Standard hand fitting height 1
- 3 hands
- Big date with direct change from 31 - 01
- Second time zone
PDF
Size ''' / Size mm 13 ½ 30.50
Height mm 4.35
Total height mm 6.00
Hand-fitting -
Jewels 0
Date position D6
Hour wheel MY075.A22
Stem MY065.299
Battery 377 / SR626SW
Hands holes Ø mm 120/70/17
PDF
DOCUMENTATION TECHNIQUE
Size ''' / Size mm 12 ½ 28.60
Height mm 4.40
Total height mm 7.18
Hand-fitting 3
Jewels 13
Date position D12M12 (day/month)
Hour wheel RL3301.247
Stem RL3000.177
Battery 395 / SR927SW
Hands holes Ø mm 250/150/90/25/20/20/20
Information Small Sec at 3, 1/10 Sec at 6, 30 Min at 9, Date by Center Hand
PDF
DOCUMENTATION TECHNIQUE
