Size ''' / Size mm 8 ¾ 20.00
Height mm 2.50
Total height mm 4.79
Hand-fitting 1
Jewels 6
Date position D6
Hour wheel RL3301.134
Stem RL3000.131
Battery 362 / SR721SW
Hands holes Ø mm 120/70/20
PDF
Size ''' / Size mm 11 ½ 26.20
Height mm 2.50
Total height mm 3.47
Hand-fitting 0
Jewels 7
Date position D3
Hour wheel ETA066503
Stem ETA001745
Battery 371 / SR920SW + 395 / SR927SW
Hands holes Ø mm 120/70
Information = 955114
PDF
Size
13 1/2’’’
Height
5.52mm
Accuracy
-10~+30 sec per day
osture Difference
under 40 sec
Runnning Time
40 hours
Vibration Frequency
28800 per hour
Jewels
26 pcs
Function
Stop second device
Automatic and hand winding
Quick date setteing
3 Hands Date
Power reserve
Month/Day
24H Display
Size ''' / Size mm 10 ½ 23.90
Height mm 3.00
Total height mm 4.46
Hand-fitting 1
Jewels 1
Date position -
Hour wheel RL3301.229
Stem RL3000.164
Battery 371 / SR920SW
Hands holes Ø mm 120/70/20
PDF
Size ''' / Size mm 10 ½ 23.90
Height mm 3.00
Total height mm 4.50
Hand-fitting 1
Jewels 1
Date position D3
Hour wheel RL3301.229
Stem RL3000.164
Battery 371 / SR920SW
Hands holes Ø mm 120/70/20
PDF
Size ''' / Size mm 10 ½ 23.90
Height mm 3.00
Total height mm 4.50
Hand-fitting 1
Jewels 1
Date position D6
Hour wheel RL3301.229
Stem RL3000.164
Battery 371 / SR920SW
Hands holes Ø mm 120/70/20
PDF
Size ''' / Size mm 10 ½ 23.90
Height mm 3.00
Total height mm 4.46
Hand-fitting 1
Jewels 1
Date position DD3 (day/date)
Hour wheel RL3301.231
Stem RL3000.164
Battery 371 / SR920SW
Hands holes Ø mm 120/70/20
PDF
Size ''' / Size mm 11 ½ 26.20
Height mm 3.00
Total height mm 4.50
Hand-fitting 1
Jewels 1
Date position -
Hour wheel RL3301.229
Stem RL3000.164
Battery 371 / SR920SW
Hands holes Ø mm 120/70/20
PDF
Size ''' / Size mm 10 ½ 23.90
Height mm 2.50
Total height mm 4.12
Hand-fitting 1
Jewels 5
Date position D6
Hour wheel RL3301.142
Stem RL3000.131
Battery 362 / SR721SW
Hands holes Ø mm 120/70
Information
PDF
Size ''' / Size mm - 21.50 x 21.30
Height mm 2.78
Total height mm 4.79
Hand-fitting -
Jewels 1
Date position DD3 (day/date)
Hour wheel S0271934
Stem S0351892
Battery 370 / SR920W
Hands holes Ø mm 110/65/20
PDF
Size ''' / Size mm - 21.50 x 21.30
Height mm 2.57
Total height mm 3.80
Hand-fitting -
Jewels 1
Date position D3
Hour wheel S0271929
Stem S0351892
Battery 371 / SR920SW
Hands holes Ø mm 110/65
PDF
Size ''' / Size mm 6 ¾ x 8 15.70 x 17.80
Height mm 2.75
Total height mm 3.71
Hand-fitting S
Jewels 0
Date position D6
Hour wheel S0271929
Stem SK0405.VX12E
Battery 364 / SR621SW
Hands holes Ø mm 110/65
PDF
Size ''' / Size mm 12 27.60
Height mm 4.89
Total height mm 6.72
Hand-fitting M
Jewels 6
Date position DD3 (day/date)
Hour wheel S0271670
Stem S0351652
Battery S302324T
Hands holes Ø mm 110/65/21
Information Autoquartz
Size ''' / Size mm 6 ¾ x 8 15.30 x 18.20
Height mm 2.50
Total height mm 6.15
Hand-fitting 5
Jewels 5
Date position -
Hour wheel RL3301.216
Stem RL3000.132
Battery 364 / SR621SW
Hands holes Ø mm 120/70/20
PDF
DOCUMENTATION TECHNIQUE
Mouvement quartz analogique
Ligne de produits mastertech
Calibre 6003.D
Dimension du mouvement 11½'''
Version Swiss made
4 rubis, doré EOL
Durée de vie de pile (théorique) 43 mois
Aiguillages standard 1
- Date
- 3 aiguilles
- Mouvement en métal, réparable
- Consommation réduite avec tige tirée: Réduction de consommation d'environ 70%
Dimensions total 26.20 mm
Encageage 25.60 mm
Hauteur mouvement 2.50 mm
Hauteur au-dessus de la pile 2.50 mm
Hauteur filet 0.6 mm
Hauteur tige 1.00 mm
Tige chemin 0.9 mm
Tige filetage 0.9 mm
Pile No. 373
Tension de la pile 1.5 V
Durée de vie de pile (théorique) 43 mois
Consommation - typique
(quantième non en prise) 0.96 µA
Consommation - maximum
(quantième non en prise) 1.85 µA
Couple utile petite seconde – typique
(quantième non en prise) 7 µNm
Couple utile aiguille de minute – typique
(quantième non en prise) 350 µNm
Température de fonctionnement 0 - 50 °C
Marche instantanée (T=25°C) -10/ +20 sec/mois
Résistance aux champs magnétiques 18,8 Oe
Résistance au choc NIHS 91-10
PDF
Size ''' / Size mm - 27.60
Height mm 3.30
Total height mm 5.78
Hand-fitting -
Jewels 0
Date position D3
Hour wheel S0271583
Stem S0351583
Battery 399 / SR927W
Hands holes Ø mm Not available
Information Hrs + Min at 6, Small Sec at 9, 1/20 at 12
PDF
Size ''' / Size mm - 21.50 x 21.30
Height mm 2.78
Total height mm 4.85
Hand-fitting -
Jewels 1
Date position DD3 (day/date)
Hour wheel S0271934
Stem S0351892
Battery 371 / SR920SW
Hands holes Ø mm 110/65/20
PDF
Size ''' / Size mm - 27.60
Height mm 3.30
Total height mm 5.84
Hand-fitting -
Jewels 0
Date position D3
Hour wheel S0271588
Stem S0351583
Battery 399 / SR927W
Hands holes Ø mm Not available
Information Min at 6, Small Sec at 9, 1/10 Sec at 12
Size ''' / Size mm 10 ½ 21.30 x 24.00
Height mm 2.98
Total height mm Not available
Hand-fitting M
Jewels 2
Date position D3
Hour wheel S0271948
Stem SK0405.VX12E
Battery S302324Y
Hands holes Ø mm Not available
Information Solar
Size ''' / Size mm 12 ¾ 26.00 x 29.36
Height mm 3.99
Total height mm 6.17
Hand-fitting M
Jewels 0
Date position -
Hour wheel S0271658
Stem S0351578
Battery 395 / SR927SW
Hands holes Ø mm 110/65/20/20/20/20
Information Day at 3, Date at 6, 24 Hrs at 9
PDF

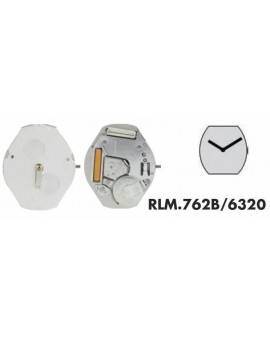

Size ''' / Size mm 6 ¾ x 8 15.30 x 18.20
Height mm 3.25
Total height mm 4.26
Hand-fitting 1
Jewels 1
Date position -
Hour wheel Not available
Stem FE51020.6320
Battery 364 / SR621SW
Hands holes Ø mm 120/70
PDF
DOCUMENTATION TECHNIQUE

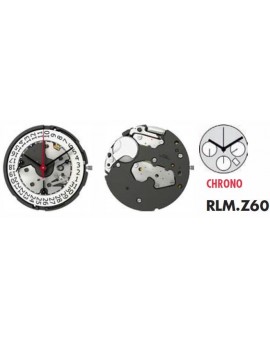

Size ''' / Size mm 13 ¼ 30.60
Height mm 4.60
Total height mm 6.90
Hand-fitting 1
Jewels 0
Date position D4
Hour wheel RL3301.332TA
Stem RL3000.208
Battery 317 / SR516SW
Hands holes Ø mm 150/90/25/20/20/20
Information Small Sec at 2, 30 Min at 6, Day at 10
Size ''' / Size mm 10 ½ 23.90
Height mm 3.00
Total height mm 4.80
Hand-fitting 2
Jewels 1
Date position D3
Hour wheel RL3301.230TA
Stem RL3000.164
Battery 371 / SR920SW
Hands fitting Ø mm 120/70/20
PDF
