This polishing slide is placed on the rail of a lapping machine and then allows controlled and smooth movement of the workpiece. The angle that the workpiece has to the lapping disc can be very finely adjusted horizontally and vertically.
The holder allows the workpiece to be fixed quickly and securely.
Holder: Ø 16 – 45 mm Inclination up to 45° Height in starting position: 120 mm For lapping discs with Ø 240 mm Material: Metal
ECO-Maxi "magnetic" (magnetic polishing) This machine type is limited to the application "magnetic polishing".
It is the preliminary stage for wet processing and replaces the conventional electrolytic polishing bath.
After just 15 - 30 minutes you can achieve: - complete removal of oxide discoloration and investment material residues - shine even in difficult to access, delicate areas
Basic equipment (cannot be expanded): Timer, speed control via frequency converter, up to 1900 rpm, automatic change of direction of rotation, 6 l work container, 200 g stainless steel pins M 5/5, 1 l Compound SC 3
Notice according to the REACH Regulation (EC) No. 1907/2006 for the including Otec Compound SC 3
This product contains chemical substances that are subject to labelling requirements under the REACH and CLP Regulations.
Signal word: Warning
The relevant Hazard statements (H-phrases) are: H319 – Causes serious eye irritation. H413 – May cause long lasting harmful effects to aquatic life.

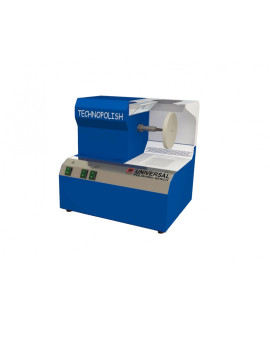

The Technopolish Polishing Machine which is equipped with the highest quality materials and the latest technology, , running at 3000 rpm. Thanks to its ergonomic design, it is compatible with all kinds of working conditions. It has an arm support that provided to you work tirelessly. Thanks to the buttons it is easy to use and trouble-free.
Ergonomic design. Maintenance-free, quiet and high-performance powerful motor. Water resistant 304 quality stainless steel body. 750 m3 Vacuum with superior suction power. 3 filtration System which has fine dust separation and easy to clean. 4X9 1600 lm Daylight Led Lighting. Movable transparent plexiglass protector. Suction power: 750 m³ / s Brush: Max. Ø160,0 mm Shaft: Ø 14,0 mm Dimensions: L47 x B57 x H57 cm Weight: 33.5 kg
