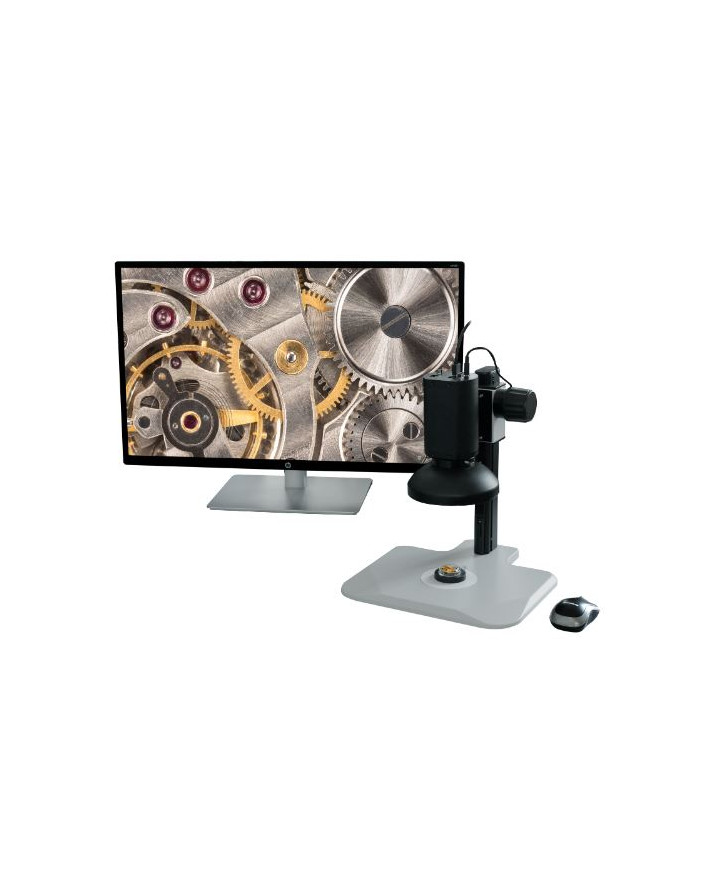

SMV-3 3D video inspection systems with ‘Focus Stacking’

SMV-3 3D video inspection systems with ‘Focus Stacking’ function


The SMV-3 video inspection system offers advanced technology thanks to its ‘Focus Stacking’ function, combining precision and ease of use. Designed for professionals in watchmaking and other fields requiring detailed inspections, this system allows multiple photos to be merged to obtain a high-definition image with a large depth of field.

Features:
Focus Stacking function operates without a PC
FULL HD-5 MP camera, 1920 x 1080P @60 fps
Full HD flat screen up to 23.8"
Image recording via Ethernet network or USB stick
Ergonomic stand with integrated cabling
Diascopic and episcopic lighting included
Optical magnification: from 3x to up to 200x
Available configurations:
MSA14.170: without measurement functions, 13.3" screen
MSA14.171: with measurement functions, 23.8" screen
MSA14.180: with measurement functions, ‘X-Y’ table
Main measurement functions:
Measurement types: linear, diameter, distances, etc.
Calibration according to measurement type
Automatic/manual edge detection
Note: Also includes several accessories such as an X-Y measuring table, LED lighting dome, and much more.
