Drilling and milling stand BFB 2000

€223.36
Tax excluded

Drilling and milling stand BFB 2000

For standard drills with a 43 mm neck. Tilting head up to 90 °, allowing many possibilities of use:

Slant drilling, varied milling without special cutters and milling of oblique holes. Switchable in fine adjustment of the milling head. Stop and graduated scale of depth. Advance by rack with high gearing for drilling without large deployment of force. Drilling column 45 mm, height 500 mm. 140 mm range (from the outside of the column to the center of the tool). 65 mm stroke. Solid tablet, milled flat, useful surface of 200 x 200 mm and 2 continuous grooves T according to the standard MICROMOT (12 x 6 x 5 mm). Simple tightening of all drills available on the market with 43 mm collar. Weight approx. 6.5 kg.

NO 20,000

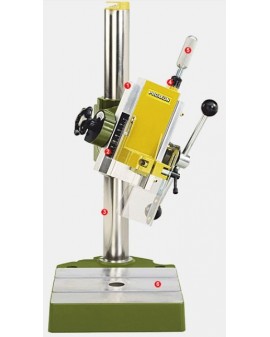

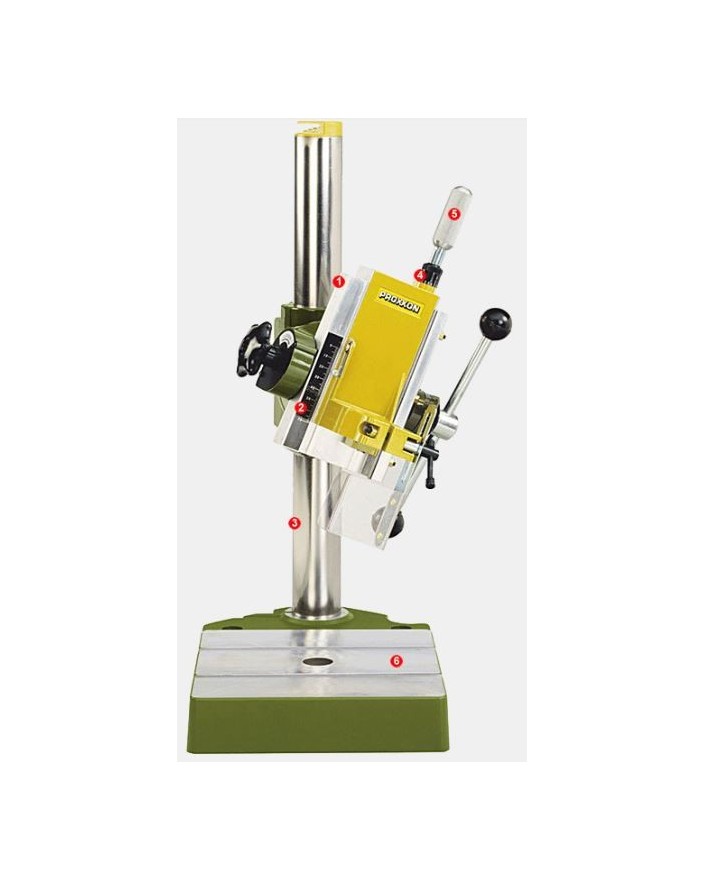

1Adjustable countersunk mill in dovetail.
2Graduation well legible.
3Colon drill 45 mm, height 500 mm.
4Position 0 adjustable for fine feed.
5Setting on fine adjustment with threaded shaft.
6Table stable, milled flat, with 2 T-grooves according to the MICROMOT standard (12 x 6 x 5 mm).

Quantity
In order

Drilling and milling stand BFB 2000

For standard drills with a 43 mm neck. Tilting head up to 90 °, allowing many possibilities of use:

Slant drilling, varied milling without special cutters and milling of oblique holes. Switchable in fine adjustment of the milling head. Stop and graduated scale of depth. Advance by rack with high gearing for drilling without large deployment of force. Drilling column 45 mm, height 500 mm. 140 mm range (from the outside of the column to the center of the tool). 65 mm stroke. Solid tablet, milled flat, useful surface of 200 x 200 mm and 2 continuous grooves T according to the standard MICROMOT (12 x 6 x 5 mm). Simple tightening of all drills available on the market with 43 mm collar. Weight approx. 6.5 kg.

NO 20,000

1Adjustable countersunk mill in dovetail.
2Graduation well legible.
3Colon drill 45 mm, height 500 mm.
4Position 0 adjustable for fine feed.
5Setting on fine adjustment with threaded shaft.
6Table stable, milled flat, with 2 T-grooves according to the MICROMOT standard (12 x 6 x 5 mm).
