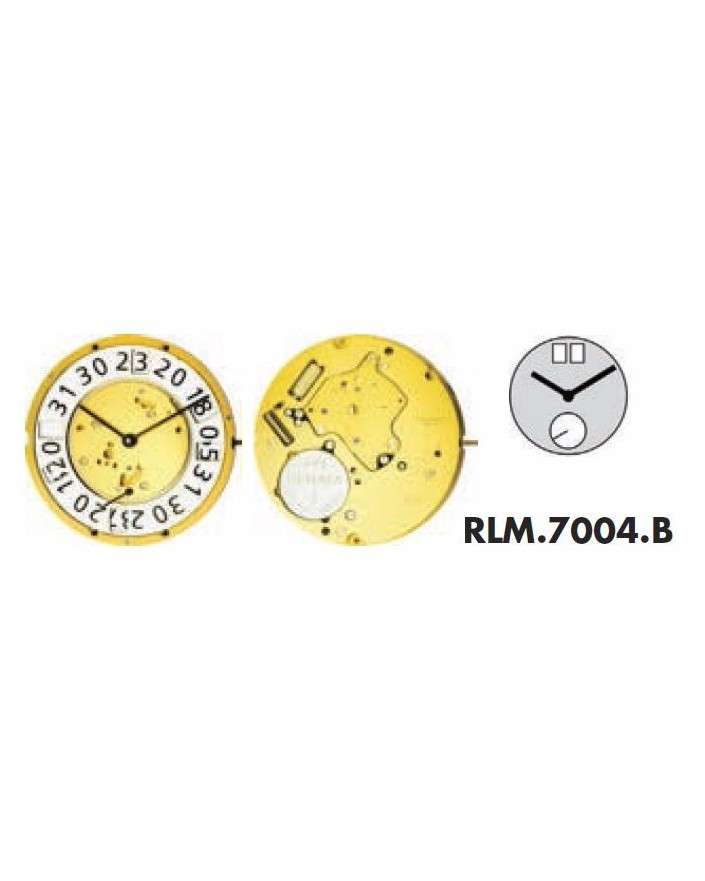

Movement RL-HARLEY 7004B
Specifications techniques
Diametre total 34.60 mm
Encageage 33.80 mm
Hauteur mouvement 5.60 mm
Hauteur au-dessous pile standard 5.60 mm
Hauteur filet 0.60 mm
Hauteur tige 3.30 mm
Tige chemin 1.00 mm
Tige filetage 0.90 mm
Pile standard 381
Dureee de vie de pile standard 48 mois
Tension de pile 1.5 V
Consommation de courant . typique 1.43 ƒÊA (quantieme
non en prise)
Consommation de courant . maximum 3.1 ƒÊA (quantieme
non en prise)
Couple de rotation seconde . typique 10 ƒÊNm
Couple de rotation minute . typique 500 ƒÊNm
Temperature de fonctionnement 0 - 50 ‹C
Taux instantane -10/ +20 sec/mois
Resistance aux champs magnetiques 18.8 Oe
Resistance aux chocs NIHS 91-10
Fabrication de montres
Plan Cercle d'emboitage (standard, PDF)
Plan Cadran (tige 3h, date 12h, PDF)
Plan Aiguillage (aiguillage 1, PDF)
Plan Tige de mise a l'heure
Information d'emboitage (PDF)
Porte-pieces pour T2 (PDF)
Mode d'emploi
Mode d'emploi (PDF)
PDF
DOCUMENTATION TECHNIQUE
Specifications techniques
Diametre total 34.60 mm
Encageage 33.80 mm
Hauteur mouvement 5.60 mm
Hauteur au-dessous pile standard 5.60 mm
Hauteur filet 0.60 mm
Hauteur tige 3.30 mm
Tige chemin 1.00 mm
Tige filetage 0.90 mm
Pile standard 381
Dureee de vie de pile standard 48 mois
Tension de pile 1.5 V
Consommation de courant . typique 1.43 ƒÊA (quantieme
non en prise)
Consommation de courant . maximum 3.1 ƒÊA (quantieme
non en prise)
Couple de rotation seconde . typique 10 ƒÊNm
Couple de rotation minute . typique 500 ƒÊNm
Temperature de fonctionnement 0 - 50 ‹C
Taux instantane -10/ +20 sec/mois
Resistance aux champs magnetiques 18.8 Oe
Resistance aux chocs NIHS 91-10
Fabrication de montres
Plan Cercle d'emboitage (standard, PDF)
Plan Cadran (tige 3h, date 12h, PDF)
Plan Aiguillage (aiguillage 1, PDF)
Plan Tige de mise a l'heure
Information d'emboitage (PDF)
Porte-pieces pour T2 (PDF)
Mode d'emploi
Mode d'emploi (PDF)
PDF
DOCUMENTATION TECHNIQUE
