Ø 50 mm x 1.1 (bore 10 mm). 20 teeth.
For the extremely clean cutting of balsa and
plywood. Also for the cutting of plates in fiber
Glass and POLYCARBONATE.
N ° 28,017

Replacement abrasive sheets for PS 13
Each of 3 leaves with 20 different shapes. Silicon carbide,
adhesive.
N ° 28 822 Grain 180
No. 28 824 Grain 240
No. 28,826 Grain 400

Replacement abrasive sheets for PS 13
Each of 3 leaves with 20 different shapes. Silicon carbide,
adhesive.
N ° 28 822 Grain 180
No. 28 824 Grain 240
No. 28,826 Grain 400

Replacement abrasive sheets for PS 13
Each of 3 leaves with 20 different shapes. Silicon carbide,
adhesive.
N ° 28 822 Grain 180
No. 28 824 Grain 240
No. 28,826 Grain 400

Brushes made of brushed stainless steel, round and round. To clean,
brush special steel. Eliminate slags, calamines and solder remains.
Also for aluminum and non-ferrous metals. Rod Ø 2,35.

Corundum discs, caps and abrasive belts. The sanding products are strong and have different grains for preparatory work or finishing. Great resistance. Different versions for the most different application sectors. For sanding, smoothing, polishing of hardened cast iron, gray cast iron, stainless steel, steel, non-ferrous metals, wood and plastics. Also suitable for making bevels. Adapt the speed to the material to be sanded. High speed for steel, medium for wood and low for plastics. Sanding belts and caps are also suitable for finishing spokes and grooves. Axis Ø 3. All dimensions are in mm.

Steel notched clamps
These flanges come with the KT 70 set, but are also available separately. Delivered with 2 notched calluses, 2 flanges, threaded rods with nuts and slides for T-slot, for the MICROMOT standard. For parts up to 20 mm thick. This set also fits the PD 250 / E and PD 400 towers

Set of milling cutters on reinforced metal rod
With two spiral grooves and tapered tail (cutting to the center). To enter undrilled rooms. For the work of gray cast iron, malleable cast iron, steel, cast iron, brass, aluminum, glass, plastic and carbon fiber. One piece of each 1 - 2 and 3 mm. Diameter of stem 3 mm.

NO 27 116 3 pieces

End mills made of reinforced metal, separately
See the description above.


NO 28 758 Ø 1 mm
NO 28 759 Ø 2 mm
NO 28 761 Ø 3 mm

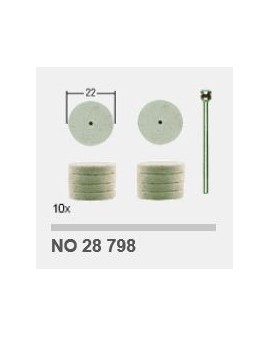

Felt polishers for the preparative and shiny polishing of metals, gold, silver, brass and aluminum. Also suitable for finishing molds and tools. Shaft diameter: 2.35 mm. For polishing it is advisable to work at low speed to prevent the workpiece and the accessory from burning. Shovel the polishing paste with oil or warm it slightly. All dimensions are in mm.

Drilling and milling stand BFB 2000

For standard drills with a 43 mm neck. Tilting head up to 90 °, allowing many possibilities of use:

Slant drilling, varied milling without special cutters and milling of oblique holes. Switchable in fine adjustment of the milling head. Stop and graduated scale of depth. Advance by rack with high gearing for drilling without large deployment of force. Drilling column 45 mm, height 500 mm. 140 mm range (from the outside of the column to the center of the tool). 65 mm stroke. Solid tablet, milled flat, useful surface of 200 x 200 mm and 2 continuous grooves T according to the standard MICROMOT (12 x 6 x 5 mm). Simple tightening of all drills available on the market with 43 mm collar. Weight approx. 6.5 kg.

NO 20,000

1Adjustable countersunk mill in dovetail.
2Graduation well legible.
3Colon drill 45 mm, height 500 mm.
4Position 0 adjustable for fine feed.
5Setting on fine adjustment with threaded shaft.
6Table stable, milled flat, with 2 T-grooves according to the MICROMOT standard (12 x 6 x 5 mm).

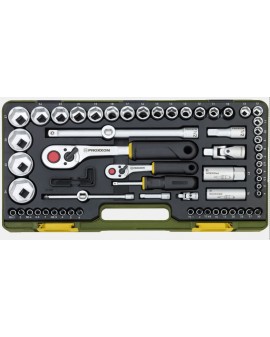

Sockets from 4 to 34 mm. Special sockets for candles in 16 and 21 mm. Screwdrivers with 4-point drive for slotted screws, Phillips screws, TX screws (with holes) and hexagon socket screws. Five wrenches for Allen screws (bent) in size 1.25 - 1.5 - 2 - 2.5 and 3 mm. 4 extensions, a 4-point screwdriver handle, 2 universal joints. Content see illustration.

The ratchet - the most important piece: Forged steel CrV monoblock. Impregnated with impeccable gearing: many of the 72 teeth engage simultaneously to allow extremely high torque transfer. With release mechanism: Loosening insertion tools by pressing a button.

For torques of 0.35 - 2Nm. Due to rocker switch for on/off/reverse also ideal for cutting threads.

Small, light and easy to handle. A chuck facilitates acceptance of all bit shanks of and up to 6.5mm (also for standard 1/4" bits). Housing of glass-fibre reinforced POLYAMIDE. Complete with 16 inserts of chrome molybdenum steel.


Slot: 0.3 x 1.5 / 0.35 x 2 / 0.4 x 2.5mm
Philips: Size 0 and 1
TX: T 6, T 8 and T 10
Allen key, internal: 3 - 3.5 - 4 - 4.5 - 5mm
Allen key, external: 1.5 - 2 and 2.5mm


Technical data:
Direct voltage 12 - 18V. 50W. Torques of 0.35 - 1.0Nm (the sixth stage bypasses the clutch and yields approx. 2Nm). Length 200mm. Weight 415g. We recommend the use of MICROMOT mains adapters of at least 2.0A.

NO 28 690



See us on YouTube!



Note:
The bit holder shown here (50 x 76 x 15mm - 2 pieces without bits), usable
for holding rotating bits with shaft of Ø 2.35 - 3.0 and 3.2mm is available as

Pressing in, pressing out, riveting, imprinting, edging, bending of wires and sheets. Embossing, beading and crimping of easy to form materials.


With 5 cylindrical pressing tools (surface hardened) being inserted into the toothed rack and fixed with a knurled screw: Ø 3 - 4 - 5 - 6 and 8mm. One each semi-spherical profile Ø 3 and Ø 9mm as well as a 60° square prism for bending sheet metal. The counterpart is an easily adjustable, hardened revolving plate with all required holes and bottom dies for the above-specified pressing tools.

Toothed rack at one front end with 6mm bore for use of the 8 bottom dies for the above-specified pressing tools. 5mm bore at the other front end for use of all commercially available riveting tools: simply wind up the toothed rack, take it out and reinsert it upside down.

Force of pressure approx. 1,000N (100kg). Maximum stroke of toothed rack with inserted tool 65mm, above revolving plate 50mm. Solid steel arm with 120mm throat. Ground base plate of steel, 80 x 190mm with an 8mm centre and two fastening bores. Weight approx. 2,800g.

Wolfram vanadium steel milling bits
Selected wolfram vanadium steel. Purpose-made stable construction with head and shaft out of a single blank. The precise flutes and optimal concentricity ensure best life expectancy. Ideal for freehand precision work. For use on hard and soft woods, non-ferrous and precious metals, as well as plastics and plaster of Paris. All shafts Ø 2.35 or 3.0mm. Ideal for milling, routing, shaping, profiling and slotting. For clean and powerful fitting of the milling bits we recommend the use of MICROMOT steel collets.
PDF

Tungsten carbide millers

Made of wear-resistant highly compressed fine-granular tungsten. Used for vibration-free milling of high accuracy dimensions. It is advisable to secure workpieces well, avoiding accidents. For milling steel, cast steel, non-ferrous metals, plastics and extremely hard materials. May be used for technical work, for engraving and milling of PC cards. Shafts Ø 3.0 or 2.35mm. Here also we recommend the use of MICROMOT steel collets.

Rasp cutter
For cutting and milling tiles, stoneware, wood and plastics.

Nylon fleece brushes

For cleaning, frosting and sanding steel, stainless steel, nonferrous metals, etc. Shaft Ø 2.35mm.

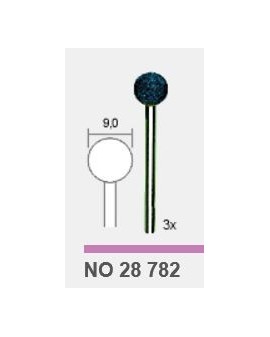

Grinding rule:
Soft materials = hard grinding bits; hard materials = soft grinding bits!

Corundum cutting discs

Discs made of a special compound of diameter 22 or 38 x 0.7mm. Used to part alloys and metals, stainless steels and non-ferrous metals. Can also be used for cutting wood and plastic. Shaft of Ø 2.35mm.

Tungsten carbide cutting disc

Thickness approx. 2mm. For cutting and profiling wood, CFK, GRP, rubber, silicone. Cooling holes reduce heating up. Shaft Ø 2.35.

13-piece set for model makers

One 2.3 ball-shaped and cylinder shaped fine milling bit each. One each ball-shaped and cone-shaped white corundum grinding bit. One each 1 and 2.3 micro drill. 5 cutting discs Ø 22. One saw blade Ø 22 (only in combination with the protective device NO 28 944) and arbor Ø 2.35.

For wood and fibreboard: HSS wood router cutters
HSS wood router cutters

For wood and fibreboard. Clean relief grinding for good work results and surface quality. High stability. Shafts 3.2mm.

For wood and fibreboard: HSS wood router cutters
